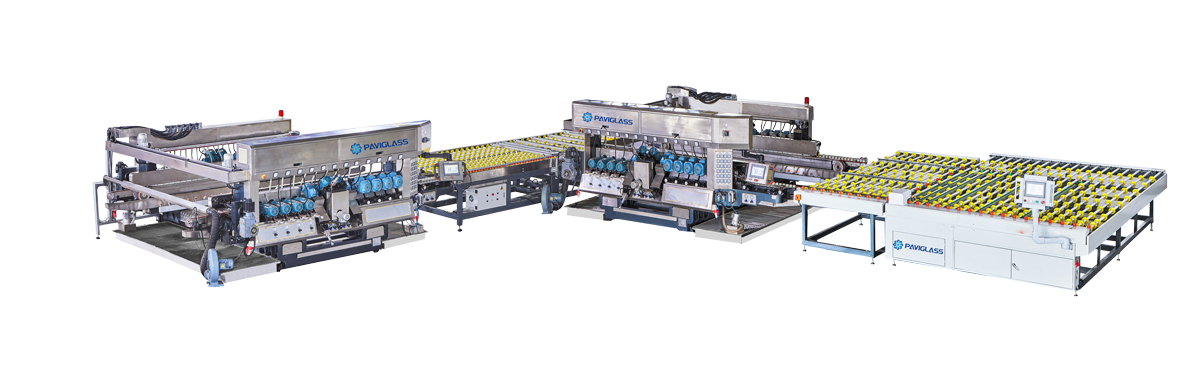

The double edging machine is designed and made for grinding and polishing the edge of flat glass. This equipment simultaneously handles two opposite glass edges with a thickness of 3 mm to 25 mm.

The bed is a complete-metal welded structure, assembled from hardened, steel rolling profiles, cooked with each other, is not subject to deformation for a long time, it contains fixed and mobile transport conveyors to work with different size of glass.

Mobile conveyor slides according to a specially treated guide, resistant to the effects of the aquatic environment. Linear guides and ball-screw pairs work simultaneously, which allows the machine to work stably, with high accuracy, long service life, and also allow the high-precision moving of the movable part.

The design of the clamping conveyor allows you to equally well hold thin and thick glass. Glass moves inside the line by means of vehicle belts (corded polyurethane), moving along steel rollers.

The structure of the main gear: an integrated long transmission shaft, a closed gear and a shaft slotted connection passed high-quality multiple heat treatment.

1. Feed device

Positioning rollers are wear-resistant material,

Putting and positioning structure with a pneumatic pressure throughout double linear guides.

Provide glass supply to be absolute parallelism.

2. Motors

The machine is equipped with reliable CDQC motors, designing specifically for the structure of the Chinese machine, water protection is better than ABB.

Special casing from silica gel material to protect against water

3. CONTROL system

A conveniently located control panel installed in front of the machine is designed to adjust all glass processing processes. The machine runs PLC (programmable logic controller), the parameters are specified and displayed on the touch screen.

The main devices that control the aggregates allow in automatic mode to track the load on the grinding circles during the processing of glass edges.

4. Automatic control of the lubrication system

The machine is equipped with a double system of automatic lubrication of all moving and rubbing elements. This system provides reliable and durable work.

Features: Convenient maintenance, timely lubrication for moving engine, and provides sufficient lubricant for a ball-screw pair and a linear guide.

5. COOLING SYSTEM

Cooling fluid (water) in the machines circulates along a closed contour. It is closed from the tank and with the help of the pump is fed to the processing zone.

Tanks for collecting fluid and conveyors are made of stainless steel; Parts that can be in contact with water are protected by a special coating.
