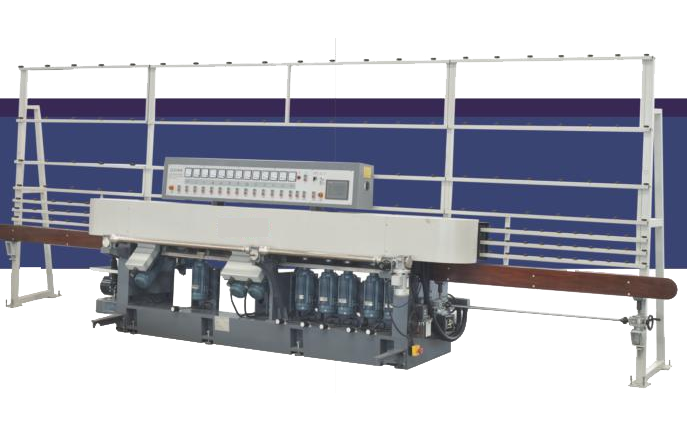

PAXB-471A (12 wheels) straight line beveling machine adopts the structure of chainless bearing, the spindles can be raised and lowered, which is a special equipment for beveled edge and bottom edge of flat glass or lens. This machine has a wide range of machining. It can grind at least 30 mm × 30 mm (1 ″× 1 ″) small glass, and the maximum processing width of beveled edge can reach 50 mm (2-3 ″ / 8). The control system is controlled by PLC and can be switched automatically and manually. The man-machine interface clearly displays various parameters such as glass thickness, bevel width and angle, remaining glass thickness and processing speed. The input and modification of parameters are intuitive, convenient and highly automatic. The transmission speed adopts frequency control, and the main drive motor adopts frequency control motor. It can grind the back plate on the machine, and is equipped with an automatic cleaning device for the back plate.
|
Speed range： |
0.5~8m/min |
|
Minimum processing area： |
30×30mm |
|
Machining maximum bevel width： |
50mm |
|
Thickness of processed glass： |
3~19mm |
|
Machining bevel angle： |
3~45° |
|
Total power： |
28 Kw |
|
Gross weight： |
About 5.5 T |
|
Area covered： |
7800×1600×2200 mm |

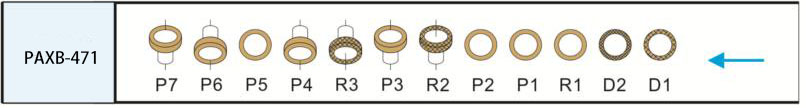

Wheels arrangement：
No
Description
Specification
Qty
Remark
1-3
Diamond wheel
Φ150XΦ22X38
Each 1
Bevel rough
4
Bottom pencil wheel
Φ175 XΦ22XR2
1
Bottom rough
5-8
Resin wheel
Φ150XΦ22X38
Each 1
Bevel fine grinding
9-12
Felt wheel
Φ150XΦ70X30
Each 1
Bevel polishing
Main configuration
No.
Description
Brand/ Material
Feature
1
PLC
Siemens
High quality, high performance
2
Motor
CDQC
High rotation accuracy, small shaft and journal runout
3
Contactor
Schneider
High quality, high performance
4
Thermal overload relay
Schneider
High quality, high performance
5
Main load switch
Schneider
High quality, high performance
6
Encoder
Kubler
High quality, high performance
7
Intermediate relay
Siemens
High quality, high performance
8
switch power supply
Omron
High quality, high performance
9
Interface
MCGS
True color display, clear picture and stable performance
10
Frequency converter
Rexroth / Schneider
High quality, high performance
11
Body, column
cast iron
High strength, small deformation
and good shock absorption
12
Front and rear guide rails
cast iron
High strength, small deformation
and good shock absorption
13
Spindle carriage
cast iron
Manual scraping, small gap and high
strength
14
Guide rail
40Cr
Section type integral quenching, with quenching hardness up to HRC52-56，wear resistant
15

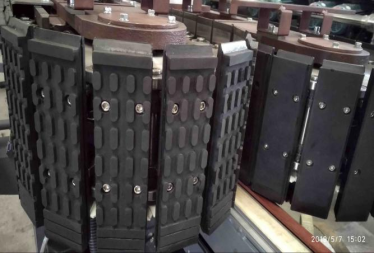

Front pad& back pads
45 steel, outsourcing nitrile rubber
High strength, no deformation during clamping,
and repeated gluing
Rubber, long service life
16
Main drive motor
Variable frequency motor
Constant torque at low speed and
constant power at high speed
17
Timing belt
Improted PU
Circular seamless, high precision
and high strength
