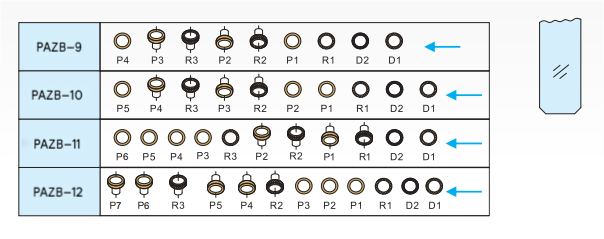

Wheels distribution：
Description:
1) 12 spindles(6 bottoms;3 front arris;3 back arris);

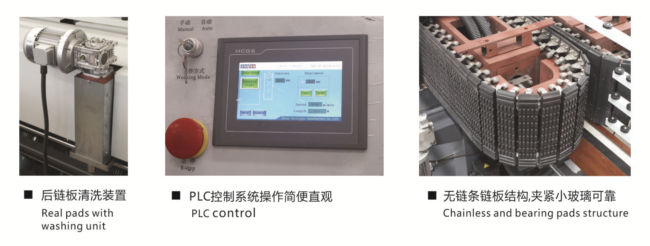

2) Bearing pads structure;
3) Toothed belt for inlet and output;
4) Height adjustable inlet conveyor;
5) Innovance PLC;
With cerium polishing (10# bottom; 11# back arris; 12# front arris)
|
1) Glass Thickness: 2) Minimum workable Dimension:(mm); 3)Working speed : 5)Number of Wheels: 6)Power: 7)Overall Dimension: 8)Weight: |
3~25(mm); 40X40mm 1.0~5.0m/min; 12; 24 KW; 7500×1200×2520(mm)(X×Y×Z); 6000 kg |
Configuration of grinding wheels:
Wheel specification
Function
Wheel
Wheel control
Pos.1
150mmx12mm 100mesh
Bottom
Diamond wheel
Mechanical
Pos.2
150mmx12mm 180mesh
Bottom
Diamond wheel
Mechanical
Pos.3
150mmx12mm 240mesh
Bottom
Resin wheel
Mechanical
Pos.4
150mmx70mm
Bottom
10S40 wheel
Mechanical
Pos.5
150mmx70mm
Bottom
10S40 wheel
Mechanical
Pos.6
130mmx12mm
Front arris
Resin wheel
Mechanical
Pos.7
130mmx60mm
Front arris
10S40 wheel
Mechanical
Pos.8
130mmx12mm
Back arris
Resin wheel
Mechanical
Pos.9
130mmx60mm
Back arris
10S40 wheel
Mechanical
Pos.10
150mmx70mm
Bottom
Polishing wheel
Mechanical
Pos.11
130mmx60mm
Back arris
CE3
Mechanical
Pos.12
130mmx60mm
Front arris
CE3
Mechanical
